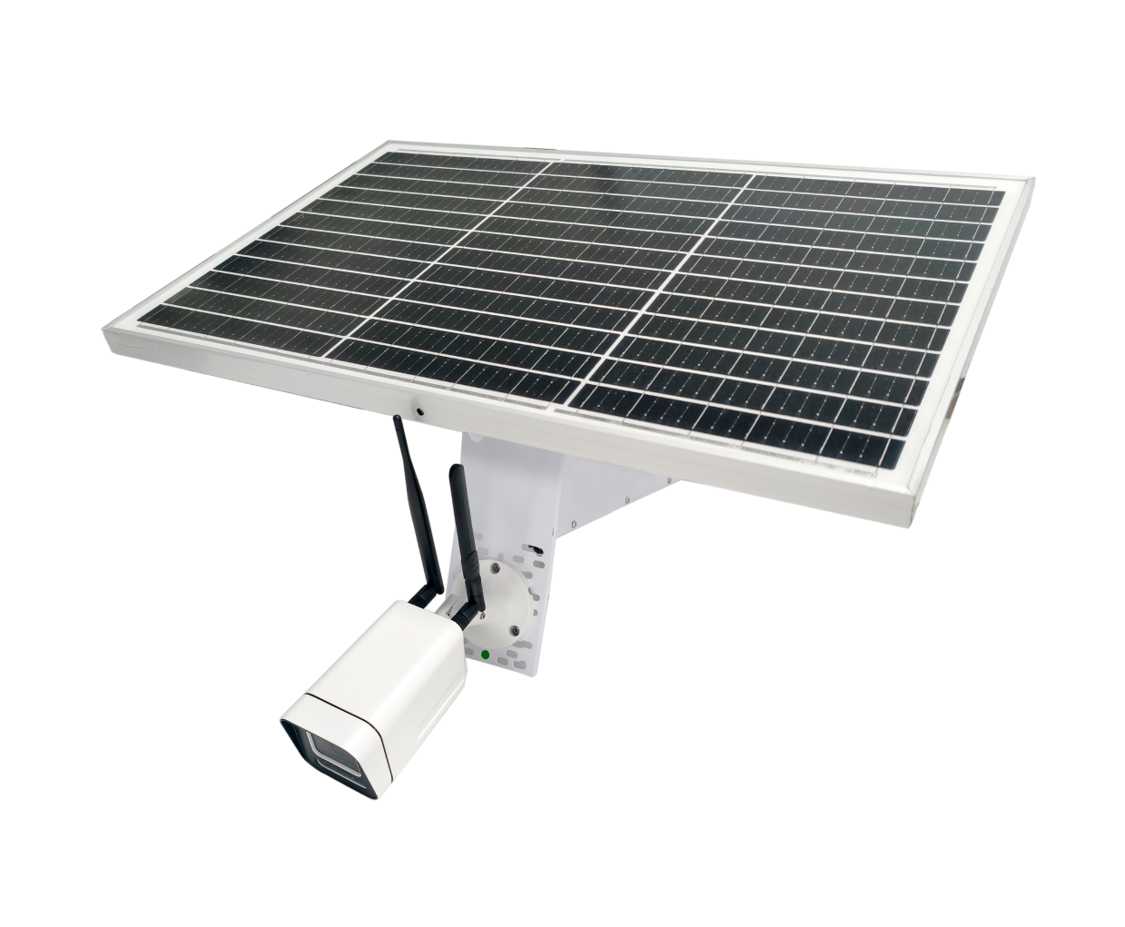

Vantron HCAM102 Wi-Fi HaLow IP Camera

The Vantron HCAM102 Wi-Fi HaLow IP Camera is designed for long-range, low-power IoT surveillance in industrial and outdoor settings. It integrates the VT-MOB-AH module compliant with IEEE 802.11ah, providing strong signal penetration and wide coverage ideal for industrial parks and agricultural sites.

Featuring a single-core ARM Cortex-A35 processor, fixed-focus 2MP lens, IR-cut filter, and infrared illumination for day/night imaging up to 5 meters. It supports 100Mbps Ethernet, 2.4GHz Wi-Fi, and solar power options for reliable off-grid operation, secured by WPA3-Enterprise and HaLow DPP quick pairing.

Suited for remote monitoring and sustainable security, the device offers IP66 protection, operates from -20°C to 60°C, and supports pole or wall mounting.

Key features
Sub-1 GHz frequency bands
Up to 1km coverage range
Superior wall/obstacle penetration
Fixed lens with IR-Cut filter, 2MP resolution
128MB memory + 1GB storage
Solar or DC supply, ultra-low power
Remote management via ETH/Wi-Fi
HaLow DPP quick pairing supported
WPA3-Enterprise (EAP-TLS) encryption

Specifications
SoC: Single-core ARM Cortex-A35 processor, up to 1.2GHz
Memory: 128MB DDR3
Storage: 1GB Flash, 32GB Built-in USB flash
Image sensor: 1/3” 4-Mega CMOS image sensor
Resolution: 1920 × 1080 @30fps
Video compression: H.265/H.264
Backlight compensation: 8 × IR illuminator (Up to 5m)
Day/night switch: IR-Cut filter with auto switching for day/night mode
Motion detection: Auto recording or snapshot on trigger
Time OSD: Supported
Wi-Fi HaLow - standard: IEEE 802.11ah
Wi-Fi HaLow - Wi-Fi mode: Station
Wi-Fi HaLow frequency range: US: 902MHz ~ 928MHz
Wi-Fi HaLow security: WPA3, AES, SHA1, SHA2
2.4GHz Wi-Fi standard: IEEE 802.11a/b/g/n/ac
2.4GHz Wi-Fi mode: AP (For web UI login)
RJ45: 1 × 10/100Mpbs RJ45 (For web UI login)
DI: 2 × DI, Configurable for 2.4GHz Wi-Fi wakeup, snapshot or recording trigger
DC jack: 1 × DC jack for direct mains adapter or solar panel input
Button: 1 × Reset pinhole button (HaLow DPP pairing / 2.4GHz Wi-Fi wakeup / factory reset)
Dimensions: 241.10mm × 74.66mm × 72.43mm (Without solar panel)
IP rating: IP66
Installation: Pole mounting, wall mounting
Power input: 12V DC (1A) via the DC jack or solar panel
Power consumption: < 8W (Average)
Remote management: Web UI login via Ethernet / 2.4 GHz Wi-Fi
Access control: IP/MAC address filtering
Onvif: Supported
Data transfer: HTTP Post, MQTT
Temperature: Operating: -20℃ ~ +60℃, Storage: -30℃ ~ +80℃
Humidity: 5%~ 95% RH (Non-condensing)
Certification: FCC, CE (In progress)
