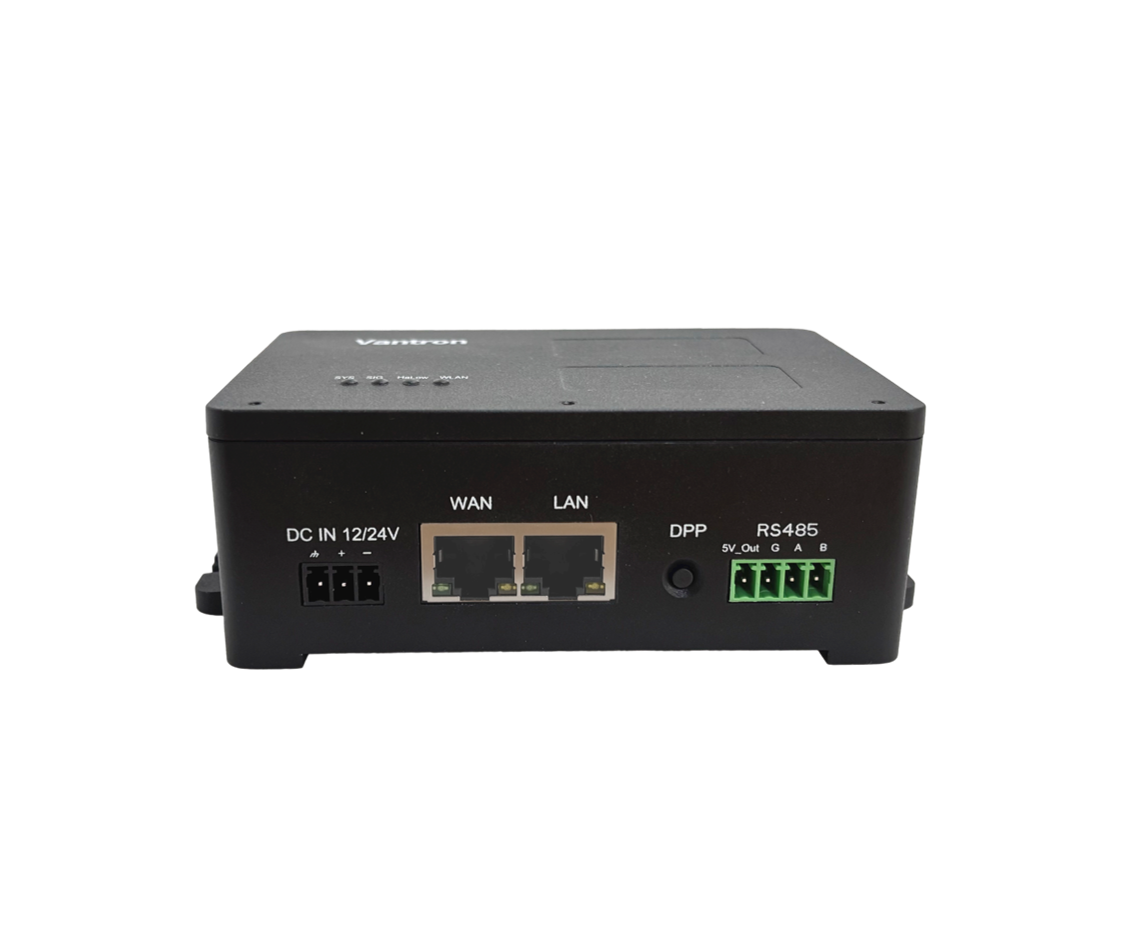

Vantron HAP202 Wi-Fi HaLow Unit

Vantron HAP202 Wi-Fi HaLow Unit combines Morse Micro's MM8108 chipset with a MediaTek dual-core MIPS1004Kc CPU at 880MHz for industrial wireless connectivity. Supporting sub-1GHz 802.11ah and 2.4GHz/5GHz Wi-Fi, it delivers extended range and flexible network options with dual Ethernet ports for simplified device management.

The device offers scalable bandwidths (1-8MHz), secure AES/WPA3 encryption, DIP switches for easy configuration between standard and mesh modes, and DPP Easy Connect for secure pairing. Its IP54 waterproof option enables dependable outdoor operation with robust network reliability and OTA support.

Ideal for industrial automation, smart cities, asset tracking, and surveillance, it operates reliably in -20°C to +70°C environments.

Key features
Wi-Fi HaLow & traditional dual-band Wi-Fi operation
1/2/4/8MHz scalable HaLow bandwidth
Dual-core SoC at 880MHz
Dual Ethernet ports for flexible connectivity
Enhanced throughput and performance
Standard & Mesh HaLow networking modes
Enhanced Wi-Fi security protections
DPP Easy Connect supported
DIP switches for convenient modes switch
IP54 waterproof kit available

Specifications
CPU: MediaTek Dual-core MIPS®1004Kc CPU, 880MHz
Wi-Fi HaLow chipset: Morse Micro MM8108
Memory: 256MB
Storage: 64MB
2.4GHz/5GHz Wi-Fi: Standard: IEE 802.11 b/g/n/ac | Frequency range: 2.412GHz~2.462GHz; 5.15GHz~5.25GHz , 5.25GHz~5.35GHz,5.47GHz~5.725GHz, 5.725GHz~5.85GHz | Channel bandwidth: 20/40/80MHz Data rate: up to 867Mbps | Security: AES-CCMP | Working mode: access point (AP), station (STA)
Wi-Fi HaLow: Standard: IEE 802.11 ah | Frequency range: 903.5MHz~926.5MHz (US) | Channel bandwidth: 1/2/4/8MHz, dynamic channel selection (DCS) supported | Transmit power: 23dBm | Data rate: up to 32.5Mbps@8MHz or 15Mbps@4MHz Fast pairing: DPP Easy Connect via hardware/software setup | Security: AES, WPA3 | Working mode: access point (AP), station (STA), Mesh
Bluetooth: BT 5.4
LED indicators: 1 x System LED, 1 x HaLow signal LED, 1 x HaLow activity LED, 1 x WLAN activity LED
Fast Ethernet: 2 x RJ45, 10/100Mbps (1 x WAN (default)/LAN, 1 x LAN)
Antenna: 1 x Wi-Fi HaLow antenna | 2 x 2.4GHz/5GHz Wi-Fi antenna
Button: 1 x DPP mode button
DIP switch: 3 x DIP switch ( Standard/Mesh, Base/Node, user defined)
Dimensions: IP40 version (with wall mount): 130mm x 82.9mm x 42mm | IP54 version (with wall mount and water proof kit): 130mm x 127.9mm x 44mm
Casing material: Black plastics, UL94, SP6 compliant (Optional: White casing)
Installation: Flat mount, wall mount
IP rating: IP40 (Optional: IP54, independent waterproof kit)
Input: 9V ~ 40V DC
Power port: 3-pin terminal (Over-current protection, reverse polarity protection)
Operating system: VantronOS
Device management: Vantron BlueSphere GWM
Upgrade: Local upgrade, OTA upgrade
Network protocol: IPV4, HTTPS, TCP & UPD, NTP client and server, ARP, TLS
Link detection: Heartbeat detection, auto reconnection
Network reliability: Multi-channel failover, backup between Ethernet, Wi-Fi, HaLow
IP application: Ping, Traceroute, DHCP Server/Client
IP routing: Static routing, dynamic routing
2.4GHz/5GHz Wi-Fi: AES-CCMP
Wi-Fi HaLow: AES, WPA3
Firewall: Stateful
Access control: MAC address, IP address, URL
Temperature: Operating: -20℃ ~ +70℃ | Storage: -40℃ ~ +85℃
Humidity: ≤ 95% RH (non-condensing)
Certification: FCC, CE, ISED
