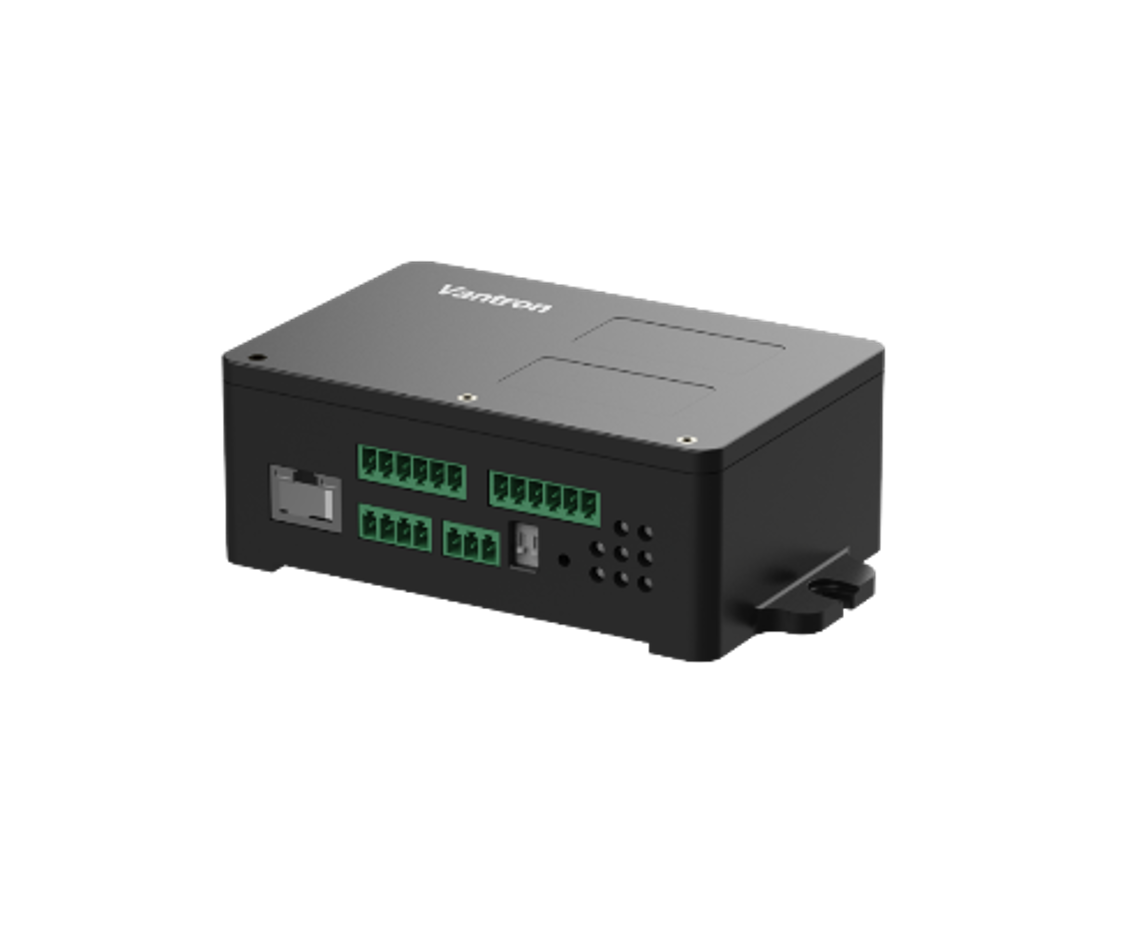

Vantron HAP103 Wi-Fi HaLow Access Point

Vantron HAP103 Wi-Fi HaLow Access Point combines IEEE 802.11ah HaLow and 2.4GHz Wi-Fi standards, delivering up to 1km range and data rates of 150 Mbps (2.4GHz) and 32.5 Mbps (HaLow). With support for over 8,000 clients simultaneously, it suits dense industrial wireless networks needing low-power operation and reliable connectivity.

Powered by a MediaTek 580MHz CPU and Morse Micro MM6108 SoC, it offers RS485 and dual Wiegand inputs for industrial data and access control integration. Optional PoE and multiple working modes enhance deployment flexibility and security with WPA3 and WPA2 protocols.

Perfect for industrial automation, smart cities, and logistics, its fanless design, wide temperature tolerance, and IP40/IP54 options ensure robust operation in diverse environments with easy management via Vantron BlueSphere GWM and OTA upgrades.

Key features
Wi-Fi HaLow with 2.4GHz Wi-Fi combined
Sub-1 GHz frequency bands supported
Longer distance: up to 1km
Fast connection supported, DIP switches for convenient modes switch
Data rates up to 150 Mbps (2.4GHz Wi-Fi) and 32.5 Mbps (Wi-Fi HaLow)
Ultra-low power consumption
Better penetration through walls and obstacles
Enhanced Wi-Fi security protections
Optional multiple I/Os for varied purposes
PoE PD optional
AP and STA modes supported

Specifications
CPU: MediaTek 580MHz MIPS® CPU
Wi-Fi HaLow SoC: Morse Micro MM6108
Memory: 256MB
Storage: 64MB
2.4GHz Wi-Fi: Standard: IEE 802.11 b/g/n; Frequency range: 2.412GHz ~ 2.462GHz; Channel bandwidth: 20/40 MHz; Data rate: up to 150 Mbps; Fast connection: WPS fast connection supported; Working mode: AP, STA (Multiple SSIDs supported in AP mode)
Wi-Fi HaLow: Standard: IEE 802.11 ah; Frequency range: 903.5MHz ~ 926.5MHz (US); Channel bandwidth: 1/2/4/8 MHz dynamic channel selection (DCS) supported; Data rate: up to 32.5 Mbps @8MHz or 15 Mbps @4MHz; Application mode: Mesh, Ad Hoc, BridgeWAN, Repeater; Fast connection: DPP fast connection supported; Working mode: AP, STA (Multiple SSIDs supported in AP mode)
Bluetooth: Optional
Fast Ethernet: 1 x RJ45, 10/100 Mbps (PoE PD optional)
RS485 with 5V output: Serial communication mode (default, baud rate: 115200); Debug mode (baud rate: 57600)
Antenna: 1 x Wi-Fi HaLow SMA connector; 1 x 2.4GHz Wi-Fi SMA connector; 1 x 2.4GHz Wi-Fi/BT SMA connector
Relay (Optional): 2 x Relay output
Input (Optional): 2 x Wiegand input (5V)
LED indicators: 1 x Power indicator; 1 x Wi-Fi HaLow activity indicator; 1 x Uplink indicator; 1 x Downlink indicator; 1 x WLAN activity indicator; 1 x Error indicator; 1 x Reserved indicator (user-defined); 1 x System indicator
Button & DIP switch: 1 x Pair/Restore button; 2 x DIP switch (AP & STA; Mesh & other modes)
Dimensions: IP40 version (With wall mount): 130mm x 74mm x 42mm; IP54 version (With wall mount and water proof kit): 130mm x 119mm x 44mm
Casing material: Plastics (UL94, SP6 compliant)
Installation: Wall mounting
Heat dissipation: Fanless
Input: 9V ~ 40V DC
Port: 3-pin terminal (Over-current protection, reverse polarity protection)
Operating system: VantronOS
VPN: OpenVPN, IPSec
Device management platform: Vantron BlueSphere GWM
Upgrade: Local upgrade, OTA upgrade
2.4GHz Wi-Fi Security: 64/128-bit WEP, TKIP, WPA, WPA2, AES, WPS
Wi-Fi HaLow Security: WPA3
Temperature: Operating: -20℃ ~ +70℃; Storage: -40℃ ~ +85℃
Humidity: ≤ 95% RH (non-condensing)
Certificate: FCC, IC
