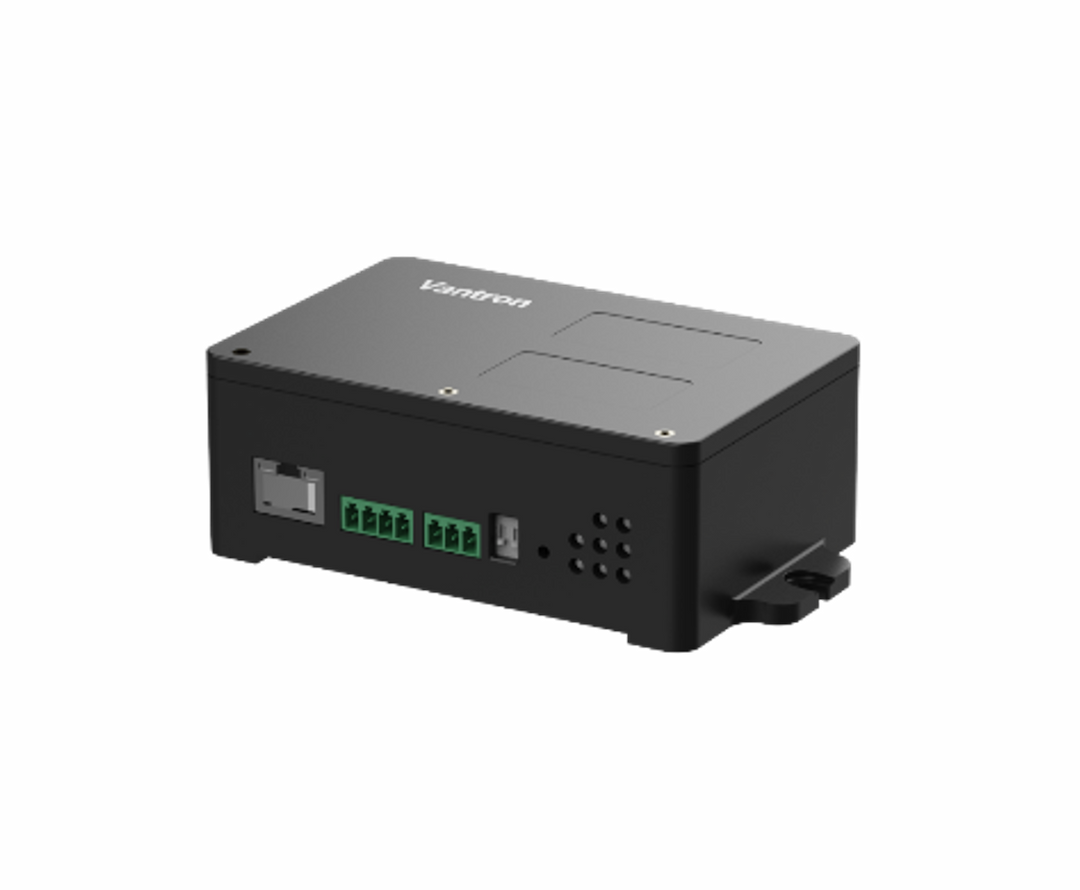

Vantron HAP101 Wi-Fi HaLow Access Point

Vantron HAP101 Wi-Fi HaLow Access Point supports IEEE 802.11ah and 802.11 b/g/n standards, providing a tailored connectivity solution for industrial IoT and automation systems. It leverages sub-1 GHz frequencies to minimize network congestion and improve reliability.

Featuring a MediaTek 580MHz MIPS CPU and 256MB memory, it supports over 8,000 clients, offers up to 1 km coverage, and delivers data rates of 150 Mbps (2.4GHz) and 32.5 Mbps (Wi-Fi HaLow). Enhanced security includes WPA3 and AES. Its fanless, wall-mount design suits harsh environments.

Designed for smart cities, industrial automation, logistics, and surveillance, it handles dense IoT deployments with multiple operation modes, including AP, Mesh, and BridgeWAN.

Key features
Wi-Fi HaLow with 2.4GHz Wi-Fi combined
Sub-1 GHz frequency bands supported
Longer distance: up to 1km
Data rates up to 150 Mbps (2.4GHz Wi-Fi) and 32.5 Mbps (Wi-Fi HaLow)
Ultra-low power consumption
Better penetration through walls and obstacles
Enhanced Wi-Fi security protections
Wide range of commercial and IoT applications
AP and STA modes supported
Fast connection supported
DIP switches for convenient modes switch

Specifications
CPU: MediaTek 580MHz MIPS® CPU
Memory: 256MB
Storage: 64MB
2.4GHz Wi-Fi: Standard: lEE 802.11 b/g/n; Frequency range: 2.412GHz~ 2.462GHz; Channel bandwidth:20/40MHz; Data rate: up to 150 Mbps; Fast connection: WPS fast connection supported; Working mode: AP, STA (Multiple SSlDs supported in AP mode)
Wi-Fi HaLow: Standard: lEE 802.11 ah; Frequency range: 903.5MHz~926.5MHz(US); Channel bandwidth: 1/2/4/8 MHz, dynamic channel selection (DCS) supported; Transmit power:21dBm; Data rate: up to 32.5 Mbps @8MHz or 15 Mbps @4MHz; Application mode: Mesh, Ad Hoc, BridgeWAN, Repeater; Fast connection: DPP fast connection supported; Working mode: AP, STA (Multiple SSlDs supported in AP mode)
Fast Ethernet: 1 x RJ45, 10/100 Mbps
Serial port (Optional): 1 x RS485 (4-pin terminal, 5V output, baud rate: 115200)
Antenna: 1 x Wi-Fi HaLow SMA connector; 2 x 2.4GHz Wi-Fi SMA connector
LED indicators: 1 x Power indicator; 1 x Wi-Fi HaLow activity indicator; 1 x Uplink indicator; 1 x Downlink indicator; 1 x WLAN activity indicator; 1 x Error indicator; 1 x Reserved indicator (user-defined); 1 x System indicator
Button & DIP switch: 1 x Pair/Restore button; 2 x DIP switch (AP & STA; Mesh & other modes)
Dimensions: IP40 version (With wall mount): 130mm x 74mm x 42mm; IP54 version (With wall mount and water proof kit): 130mm x 119mm x 44mm
Casing material: Plastics (UL94, SP6 compliant)
Installation: Wall mounting
Heat dissipation: Fanless
Input: 9V ~ 40V DC
Port: 3-pin terminal (Over-current protection, reverse polarity protection)
Operating system: VantronOS
VPN: OpenVPN, IPSec
Device management platform: Vantron BlueSphere GWM
Upgrade: Local upgrade, OTA upgrade
2.4GHz Wi-Fi Security: 64/128-bit WEP, TKIP, WPA, WPA2, AES, WPS
Wi-Fi HaLow Security: WPA3
Temperature: Operating: -20℃ ~ +70℃; Storage: -40℃ ~ +85℃
Humidity: ≤ 95% RH (non-condensing)
Certificate: FCC, IC
