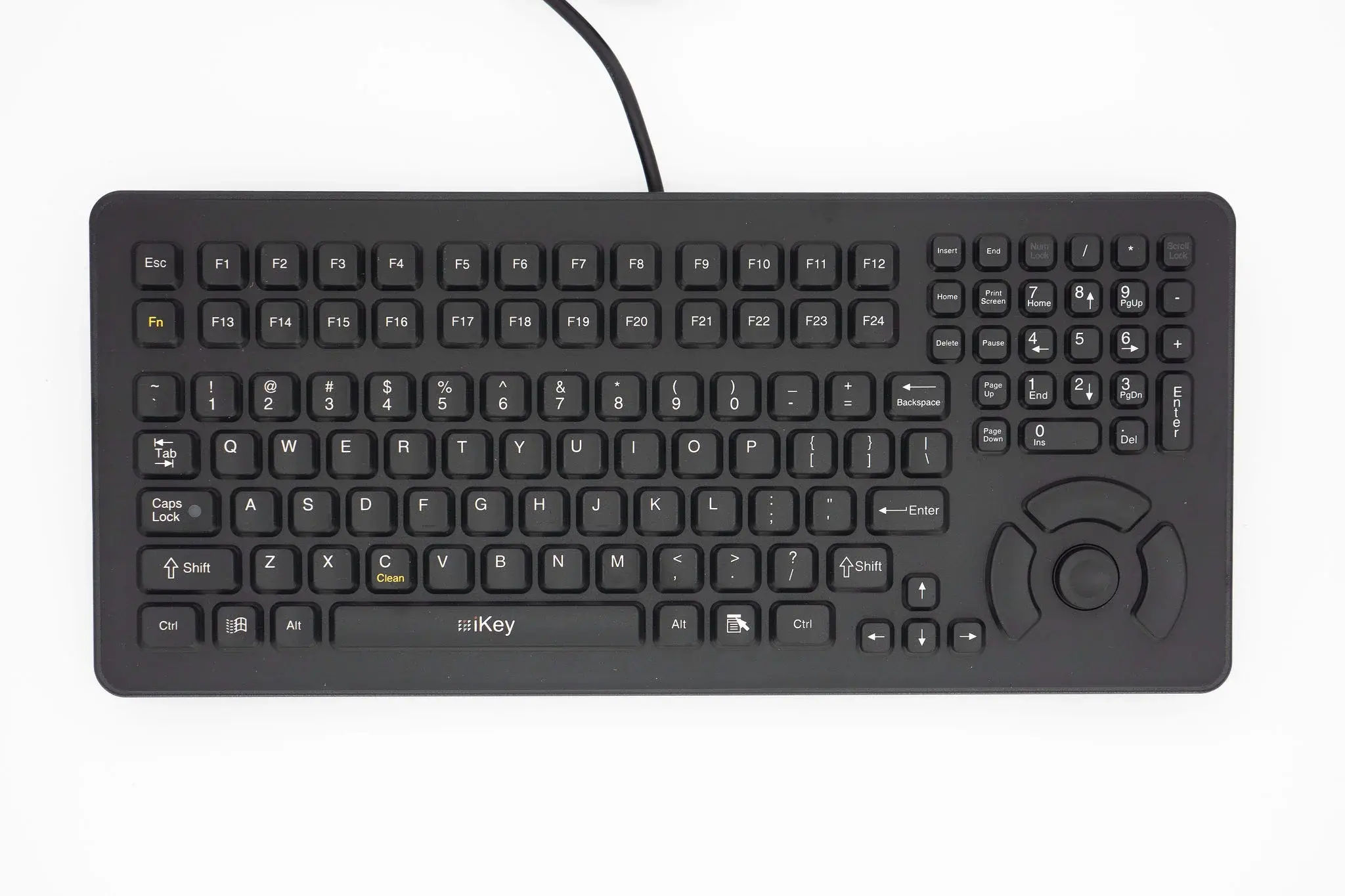

iKey DU-5K-FSR Desktop Keyboard with Force Sensing Resistor

The iKey DU-5K-FSR Desktop Keyboard with Force Sensing Resistor is engineered for industrial use where dependable input devices are critical. It features a NEMA 4X polycarbonate housing with 116 keys, including 24 function keys and an integrated force sensing resistor pointing device. Available with USB or PS/2 connectivity, along with intrinsically safe and nonincendive models suitable for hazardous environments.

Its industrial silicone rubber keys deliver tactile feedback and exceed 10 million actuations. The keyboard withstands shock, vibration, and extreme temperatures, maintaining performance in tough conditions.

Ideal for automation, transportation, energy, and defense systems, it supports secure, long-term deployment in demanding industrial and hazardous locations.

Order Information
DU-5K-FSR-PS2: With PS/2 cable
DU-5K-FSR-USB: With USB cable
DU-5K-IS
DU-5K-FSR-NI

Key Features
10-Key Numeric Pad
116-Key Functionality
Integrated Force Sensing Resistor (FSR) Pointing Device
Polycarbonate Case with Mounting Holes
USB and PS/2 configurations available
Available in regular, intrinsically safe, or nonincendive

Specifications
Dimensions: 14.94" x 6.63" x 1.81" (w-h-d) 379.5mm x 168.4mm x 45.9mm
Weight: DU-5K-FSR - 2.25 lbs +/- 0.10 lbs (1.02 kg +/- 0.05 kg)
Weight: DU-5K-FSR-IS - 3.8 lbs +/- 0.10 lbs (1.7 kg +/- 0.05 kg)
Weight: DU-5K-FSR-NI - 2.6 lbs +/- 0.10 lbs (1.7 kg +/- 0.05 kg)
Certifications: DU-5K-FSR - NEMA 4X, UL60950, FCC Part 15 Class B; DU-5K-FSR-IS- NEMA 4X, UL60950, FCC Part 15 Class B Factory Mutual Class I, II, & III, Division I, Groups C, D, E, F, & G
Shock: 3x11 ms pulses of 50g on each of 3 axes
Key Switch: MATERIAL: Industrial silicone rubber LIFE: Greater than 10 million cycles TRAVEL: 0.055 in. (1.4mm) ACTUATION FORCE: 7.05 oz. +/- 1.06 oz. (200g +/- 30g) FEEDBACK: Tactile with mechanical snap
Vibration: POWER SPECTRAL DENSITY: 0.4g²/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours
Power: DU-5K-FSR - PS2: KEYBOARD: 35mA@5V (from Keyboard port) POINTER: 5mA@5V (from Mouse port) USB: 40mA@5V (from CPU port)
Power: DU-5K-FSR-IS - KEYBOARD: 5V@ 10 ma (from CPU port) HULAPOINT: 5V@ 10 ma (from mouse conn. port)
Power: DU-5K-FSR-NI - KEYBOARD: 5V@ 10 ma (from CPU port) HULAPOINT: 5V@ 10 ma (from mouse conn. port)
Temperature Range: STORAGE: -40C to +70C (-40F to +158F) OPERATING: -20C to +60C (-4F to +140F)
