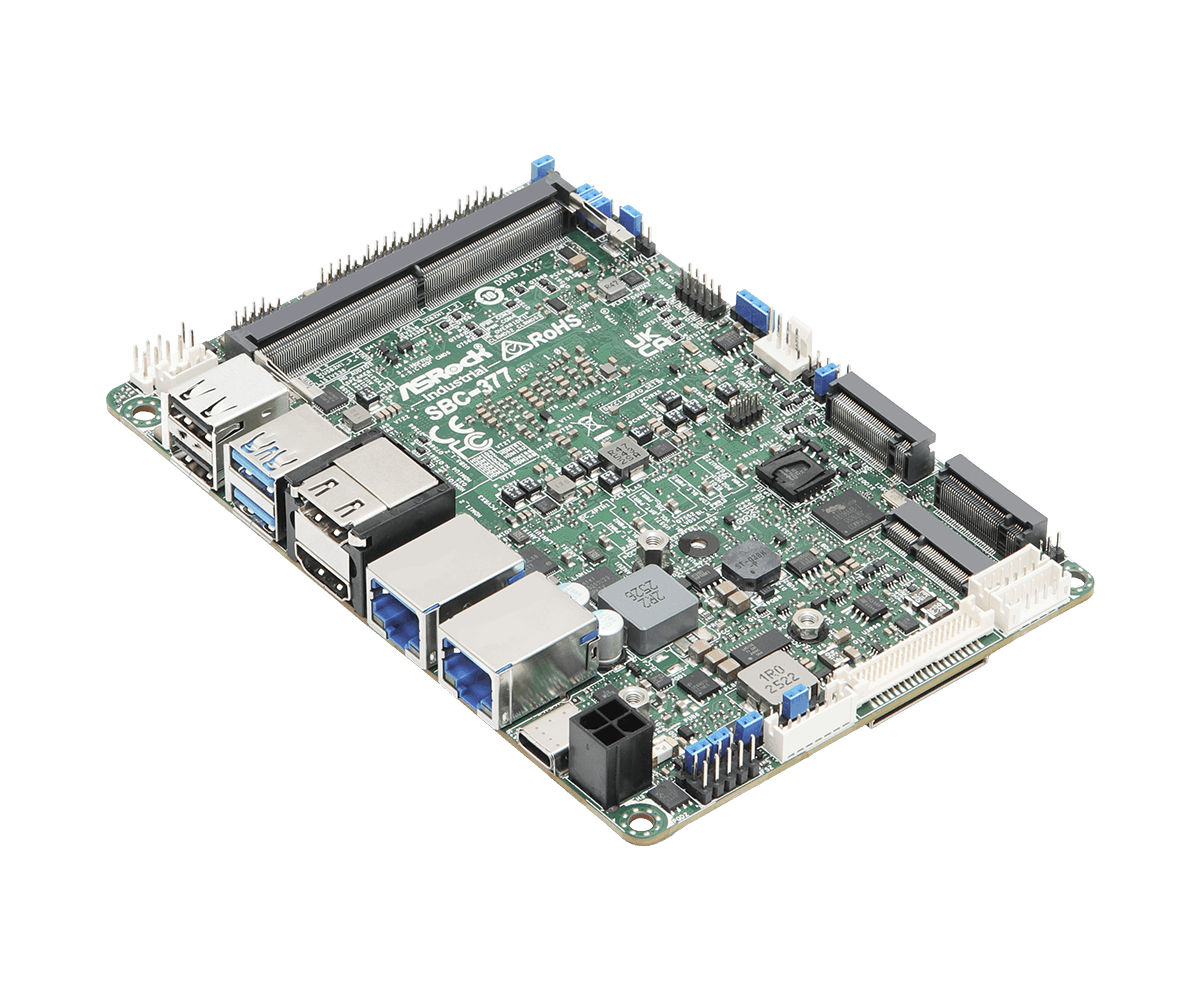

ASRock Industrial SBC-377 3.5" SBC

The ASRock Industrial SBC-377 3.5" SBC is powered by Intel Core Ultra Series 3 processors, supporting up to 128GB dual-channel DDR5 memory with In-Band ECC. It offers a compact design suitable for industrial applications requiring reliable performance and memory integrity.

This SBC provides quad-display output via HDMI 2.1, DisplayPort 1.4a, LVDS, and eDP interfaces, dual 2.5 Gigabit LAN, multiple USB ports including USB 3.2 Gen2x2 Type-C with 100W Power Delivery, and extensive M.2 expansion with Intel VMD RAID 0/1 support for secure storage solutions.

Ideal for industrial automation, IoT edge computing, transportation, and smart infrastructure, the board operates within a -20 °C to 70 °C range and supports various power inputs for diverse deployment environments.

Order Information
SBC-377P: CPU: Ultra X7 358H; HDMI: 2; DP: 1; LVDS/eDP: 1 / 1; 2.5 Gbe LAN: 2; COM: 3; USB Type-C: 1; USB 3.2: 2; USB 2.0: 6; M.2 E-Key: 1; M.2 M-Key: 2; TPM: FW TPM
SBC-377E: CPU: Ultra 5 325; HDMI: 2; DP: 1; LVDS/eDP: 1 / 1; 2.5 Gbe LAN: 2; COM: 3; USB Type-C: 1; USB 3.2: 2; USB 2.0: 6; M.2 E-Key: 1; M.2 M-Key: 2; TPM: FW TPM

Key Features
Intel® Core™ Ultra Series 3 Processors (Panther Lake-H)
2 x 262-pin SO-DIMM DDR5 7200/6400 MHz, up to 128GB (64GB per DIMM), supports In-Band ECC
1 x USB 3.2 Gen2x2, 2 x USB 3.2 Gen2, 6 x USB 2.0, 1 x M.2 Key E, 2 x M.2 Key M, 3 x COM
2 x Intel 2.5 Gigabit LAN
Supports Quad display, 2 x HDMI 2.1, 1 x DP 1.4a (1 from Type-C), 1 x LVDS or eDP, 1 x eDP 1.5
Supports VMD RAID 0/1
12~36V DC-In PWR/ Supports Type-C PD 100W

Specifications
Form Factor
Dimensions: 3.5" SBC (5.8-in x 4-in x 0.94-in, 14.7 cm x 10.2 cm x 2.40 cm)
Processor System
CPU: Intel® Core™ Ultra Series 3 Processors (Panther Lake-H)
CPU: SBC-377P (Ultra X7 358H, 4P+8E+4LPE)
CPU: SBC-377E (Ultra 5 325, 4P+4LPE)
CPU: *All CPU SKUs can support In-Band ECC.
BIOS: AMI SPI 256 Mbit
Memory
Technology: Dual Channel DDR5 7200 MHz (Ultra X7 358H)
Technology: Dual Channel DDR5 6400 MHz (Ultra 5 325)
Capacity: 128GB (64GB per DIMM)
Socket: 2 x 262-pin SO-DIMM
Graphics
Controller: Intel® Graphics
HDMI: HDMI 2.1
HDMI: Max resolution up to 7680x4320@60Hz
LVDS: Dual channel 24 bit up to 1920x1200@60Hz
LVDS: (Connector shared with eDP)
eDP: eDP 1.5
eDP: Max resolution up to 4096x2160@60Hz
eDP: Max resolution up to 1920x1080@60Hz
eDP: (one eDP single connector shared with LVDS)
MultiDisplay: Quad display (Included 1 output from Type-C)
Expansion Slot
M.2: 1 x M.2 (Key E, 2230) with PCIe Gen4 x1, USB 2.0 and CNVi for Wireless
Audio
Interface: Realtek ALC256 HD, High Definition Audio
Ethernet
Controller/ Speed: LAN1: Intel® I226LM with 10/100/1000/2500 Mbps
Controller/ Speed: LAN2: Intel® I226V with 10/100/1000/2500 Mbps
Connector: 2 x RJ-45
Rear I/O
HDMI: 2 x HDMI 2.1
Ethernet: 2 x 2.5 Gigabit LAN
USB: 2 x USB 2.0
USB: 2 x USB 3.2 Gen2
USB: 1 x USB 3.2 Gen2x2 (Type-C, 5V/3A, support DP 1.4a display output)
Internal Connector
USB: 4 x USB 2.0 (2 x 2.00mm pitch header)
COM: COM3, COM4, COM5 (RS-232/422/485)
GPIO: 4 x GPI, 4 x GPO
LVDS: 1 (Connector with LVDS/eDP signal, switch by BIOS)
eDP: 1
Speaker Header: 1
Storage
M.2: 1 x M.2 (Key M, 2242/2280) with PCIe Gen5 x4 for SSD
M.2: 1 x M.2 (Key M, 2242/3052) with PCIe Gen4 x4 and USB 2.0 for SSD
RAID: Intel® VMD RAID 0/1
RAID: **supported by PCIE interface
RAID: PCIE interface: 2*M.2 Key M
Security
TPM: TPM 2.0 onboard IC (Optional)
TPM: Intel® PTT
Watchdog Timer
Output: From Super I/O to drag RESETCON#
Interval: 256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR: 12~36V DC-In with 4-pin wafer PWR cable
Input PWR: 12V DC-In only (BOM option)
Input PWR: 20V/5A, 100W USB Type-C PD (Power Delivery)
Power On: AT/ATX Supported
Power On: - AT : Directly PWR on as power input ready
Power On: - ATX : Press button to PWR on after power input ready
Environment
Operating Temp: -20 °C ~ 70 °C
Storage Temp: -40 °C ~ 85 °C
Operating Humidity: 5% ~ 90% (non-condensing)
Storage Humidity: 5% ~ 90% (non-condensing)
